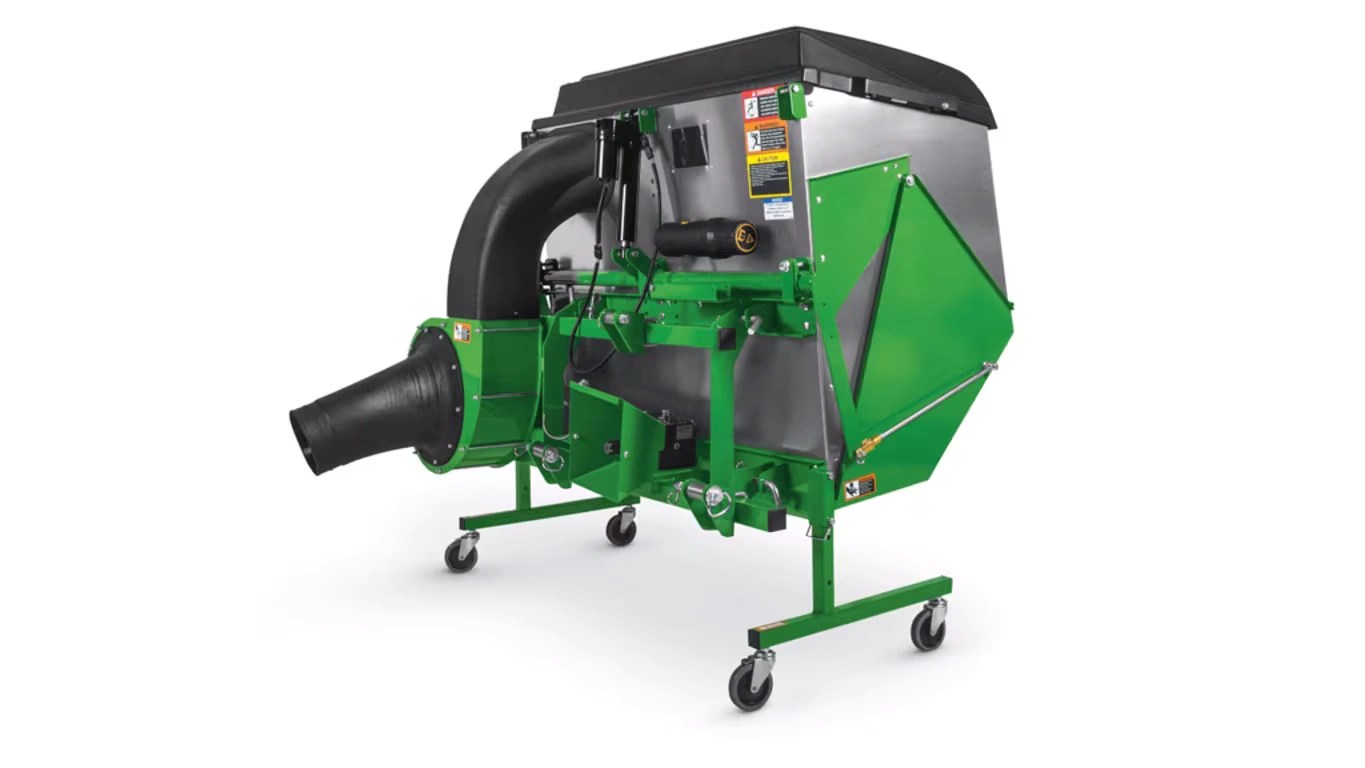

Whether you’re collecting grass clippings in the summer, pine needles, or gathering leaves in the fall, the Frontier™ MC2120 Material Collection System greatly enhances your productivity. The power take-off (PTO) driven system offers a large 705-L (20-bu) hopper capacity for longer periods of mowing.

The following are some of the key features and benefits provided by the MC2120:

• PTO-driven blower for versatility, efficiency, and higher performance
• 705-L (20-bu) hopper collecting system with dump-from-seat
• Mower deck boot that is easy to attach, eliminating the need for a Power Flow™ attachment
• Two integrated stands to make storage fast and convenient
• Fill indicator to alert the operator when the hopper is getting full to prevent chute plugging
• iMatch™ hitch system compatibility for easy hookup and removal in seconds

The high-performance, robust PTO-driven blower has been designed especially for the high-capacity MC2120 Material Collection System. It handles the capacity of the mower deck and provides plenty of velocity to fill the hopper completely. At the heart is a 190.5-mm (7.5-in.) urethane impeller with 3042 rpm that generates the suction. By having the blower directly mounted on the material collection system instead of on the end of the mower deck, weight distribution remains uncompromised, ensuring that your lawn receives a level cut that you expect.

With the MC2120 Material Collection System, the material is transferred from the high-performance steel blower into the hopper with a total capacity of 705 L (20 bu). The hopper with effortless Dump-from-seat (DFS) is simply executed with the press a button.

‍NOTE: For the DFS, a dedicated wiring harness connects the MC2120 to your tractor. It includes a rocker switch with a right-hand console mounted bracket to control the electric actuator for 1E, 1R, and 2025R Tractors. The rocker switch mounts in the available switch blank for all other John Deere tractors. Power is applied with a harness from the switch to the actuator as well as a battery or junction block harness.

Boot kits are available to adapt the MC2120 to 1E, 1R, 2R, and 3R Series Tractors equipped with a mid-mount mower deck. Boot removal and installation is toolless for quick changing of implements (after initial installation). The boot is connected to the blower with a 203-mm (8-in.) diameter smooth bore hose to handle material throughput efficiently.

Hose clamps use the helicoidal pattern on the hose to maintain a tight seal without adjustment during each installation. Clamps are retained and do not require tools to adjust (if required), providing a greater seal for increased suction. Easy access to the chute and boot for in-field removal of a clog is accomplished with tool-free clamps.
